Hyundai Creta: Rear Seat Belt / Rear Center Seat Belt Retractor

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Center Seat Belt Retractor

Components and components location

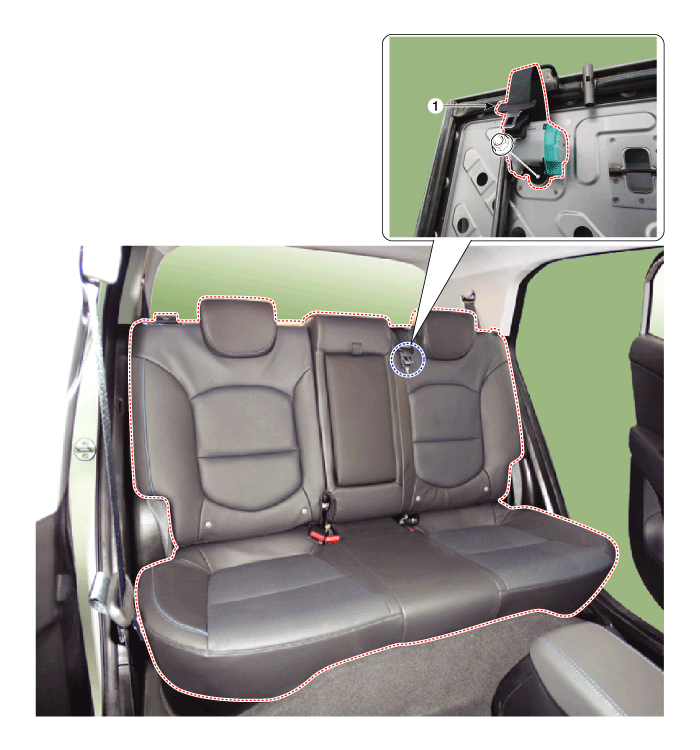

Component Location

1. Rear center seat belt retractor

Repair procedures

Replacement

•	When installing the belt, make sure not to damage the retractor.

1.	Remove the rear seat back cover [LH]. (Refer to Rear Seat - "Rear Seat Back Cover")

After loosening the mounting nut (B), then remove the rear center seat belt retractor (A).

Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

To install, reverse the removal procedure.

•	Replace any damaged clips.
