Hyundai Creta: Accessing your vehicle / Remote key

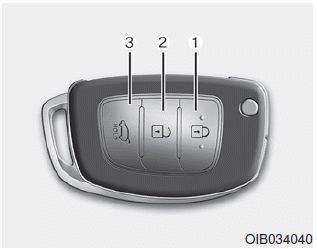

Your HYUNDAI uses a remote key, which you can use to lock or unlock a door (and tailgate) and even start the engine.

1. Door Lock
2. Door Unlock
3. Tailgate Unlock

Locking

To lock:

1. Close all doors, engine hood and tailgate.

2. Press the Door Lock button (1) on the remote key.

3. The doors will lock. The hazard warning lights will blink.

4. Make sure the doors are locked by checking the position of the door lock button inside the vehicle.

WARNING

Do not leave the keys in your vehicle with unsupervised children. Unattended children could place the key in the ignition switch and may operate power windows or other controls, or even make the vehicle move, which could result in serious injury or death.

Unlocking

To unlock:

1. Press the Door Unlock button (2) on the remote key.

2. The doors will unlock. The hazard warning lights will blink two times.

Tailgate unlocking

To unlock:

1. Press the Tailgate Unlock button (3) on the remote key for more than one second.

2. The hazard warning lights will blink two times. Once the tailgate is opened and then closed, the tailgate will lock automatically.

Start-up

For detailed information refer to “Key Ignition Switch” in chapter 5.

NOTICE

To prevent damaging the remote key:

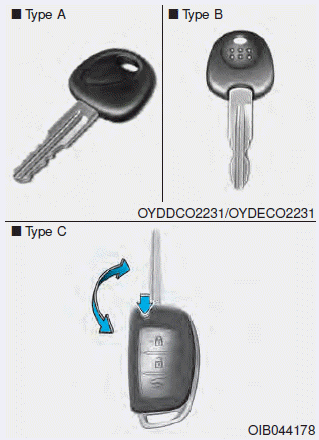

Mechanical key

If the remote key does not operate normally, you can lock or unlock the door by using the mechanical key.

Type C

To unfold the key, press the release button then the key will unfold automatically.

To fold the key, fold the key manually while pressing the release button.

NOTICE

Do not fold the key without pressing the release button. This may damage the key.

Accessing your vehicle
...

Remote key precautions
The remote key will not work if any of the following occur: The key is in the ignition switch. You exceed the operating distance limit (about 30 m [90 feet]). The remote key battery is we ...
