Special Service Tools

Tools (Number and name)	Illustration	Use
09200-3N000 Engine support fixture (Beam)		Removal and installation of the transaxle. Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000). ※Permit operating with 09200-38001. ※Refer to the engine support fixture assembly drawing below.
09200-2S000 Engine support fixture (Supporter)		Removal and installation of the transaxle. Use this supporter (SST No. : 09200-2S000) with the beam (SST No. : 09200-38001/3N000)). ※Refer to the engine support fixture assembly drawing below.
09452-26100 Oil seal installer		Installation of the differential oil seal in the transaxle case and housing side (2WD). [Using with bar (SST No.09231-H1100)]
09231-H1100 Bar		Installation of the differential oil seal in the transaxle case and housing side. [Using with oil seal installer (SST No.: 09452-26100)]
09480-A3800 Inhibitor switch neutral fixed pin		Used to align the neutral position when installing the manual control lever on the inhibitor switch.

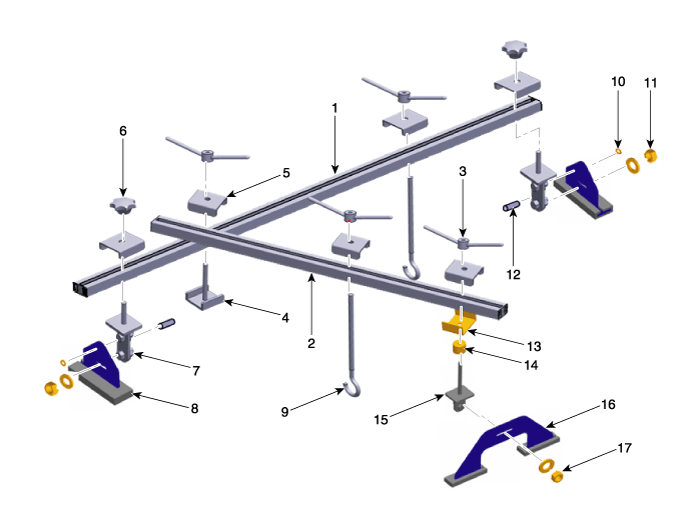

※ Engine support fixture special tool assembly drawing

1. Main bar
2. Sub bar
3. Handle
4. Stopper
5. Stopper
6. Knobe
7. Adapter
8. Supporter
9. Hanger

10. Clip
11. Nut
12. Pin
13. Stopper
14. Spacer
15. Adapter
16. Supporter
17. Nut

Specifications

Specifications Item Specifications Transaxle type A6GF1 Engine type Gasoline 1.6MPI ...

Troubleshooting

▶Fault Diagnosis Features a fail-safe mechanism that provides "limp-home" 4th gear hold to enable the vehicle to be driven to the owner's home or dealer shop. ...
