Hyundai Creta: Automatic Transaxle Control System / Transaxle Oil Temperature Sensor

Hyundai Creta GS 2014-2025 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Oil Temperature Sensor

Description and operation

Description

•	Transaxle oil temperature sensor monitors the automatic transaxle fluid's temperature and conveys the readings to TCM.

•	It is an NTC (Negative Thermal Coefficient) sensor whose resistance has an inversely proportional relationship with the temperature level.

•	Data produced by this sensor is used to identify damper clutch activation and deactivation zones within the low temperature and high temperature range and to compensate hydraulic pressure levels during gear changes.

Specifications

▷ Type: Negative Thermal Coefficient Type

Temp. [(°C)°F]	Resistance (kΩ)
(-40) -40	48.1
(-20) -4.0	15.6
(0) 32.0	5.88
(20) 68.0	2.51
(40) 104.0	1.19
(60) 140.0	0.61
(80) 176.0	0.32
(100) 212.0	0.18
(120) 248.0	0.11
(140) 284.0	0.07
(160) 320.0	0.04

Schematic diagrams

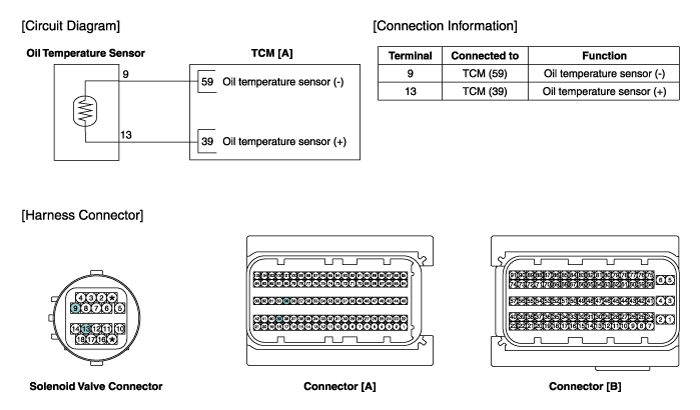

Circuit Diagram

Repair procedures

Inspection

1.	Turn ignition switch OFF.

2.	Remove the battery and battery tray.

3.	Disconnect the solenoid valve connector (A).

4.	Measure resistance between sensor signal terminal and sensor ground terminal.

Check that the resistance is within the specification.

•	If DTC about the input/output speed sensor is found, replace according to the procedures removal/installation.

Removal

1.	Remove the valve body assembly. (Refer to Valve body System - "Valve Body")

2.	Disconnect the input & output speed sensor connector (A).

Loosen the main connctor bolt (B).

Tightening torque :

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Disconnect the solenoid valve connector (A).

(1)	Press the lock

(2)	Pull up lever

5.	Remove the solenoid valve connector mounting clip (A).

Remove the solenoid valve connector (A) by pushing down from the transaxle.

•	Replace the O-Ring (A) before reinstalling solenoid valve connector.

Installation

1.	To install, reverse the removal procedure.

2.	Check fluid level, after filling the automatic transaxle with fluid. (Refer to Hydraulic System - "Fluid")
