Components

[LHD]

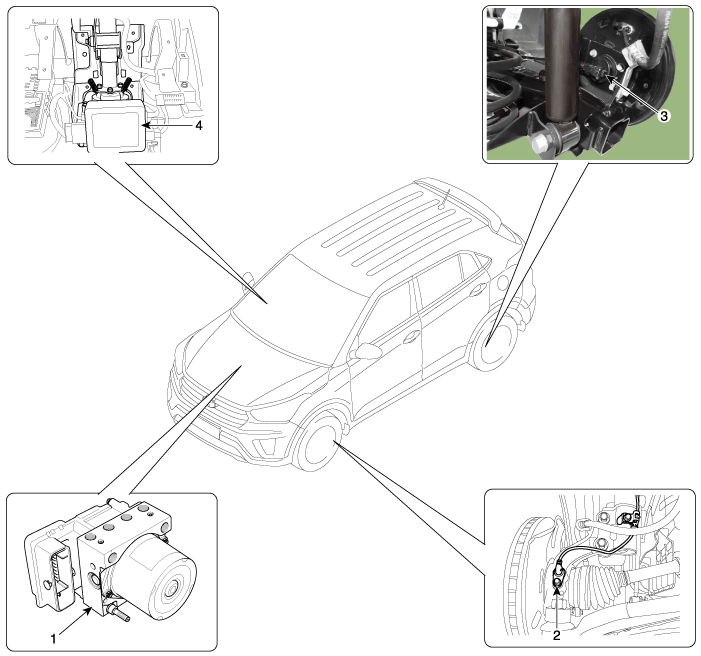

1. ABS control module (HECU)
2. Front wheel speed sensor

3. Rear wheel speed sensor
4. Steering angle sensor

[RHD]

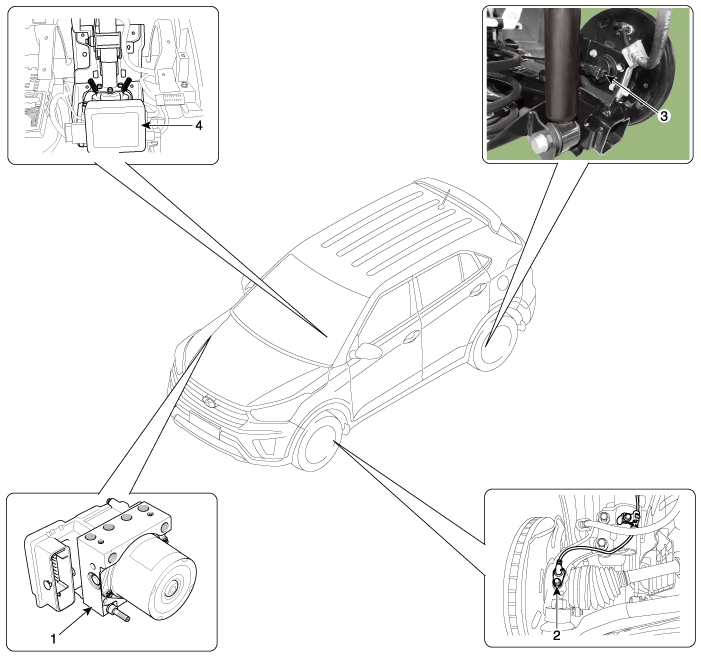

1. ABS control module (HECU)
2. Front wheel speed sensor

3. Rear wheel speed sensor
4. Steering angle sensor

Description and operation

Description This specification applies to HCU(Hydraulic Control Unit) and ECU(Electronic Control Unit) of the HECU.(Hydraulic and Electronic Control Unit) This specification is ...
