Hyundai Creta: Crankcase Emission Control System / Positive Crankcase Ventilation (PCV) Valve

Hyundai Creta GS 2014-2021 Service Manual / Emission Control System / Crankcase Emission Control System / Positive Crankcase Ventilation (PCV) Valve

Description and operation

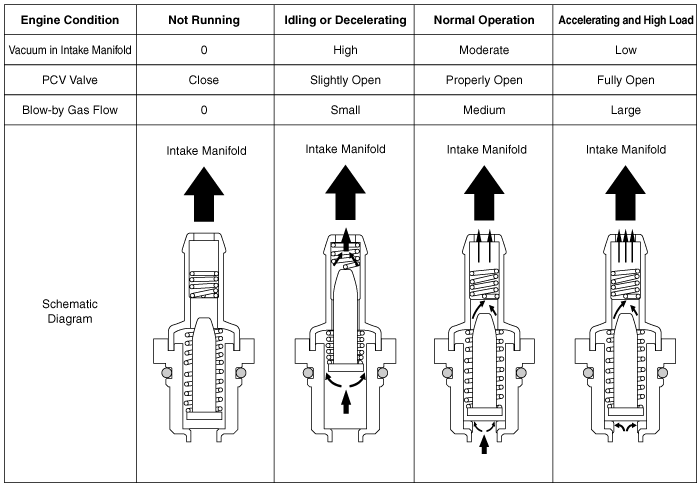

Operation Principle

Repair procedures

Removal

1.	Disconnect the vapor hose (A).

2.	Remove the PCV valve (B).

Inspection

Insert a thin stick (A) into the PCV valve (B) from the threaded side to check that the plunger movement.

•	If the plunger does not move (PCV valve is clogged), clean or replace the valve.

Installation

Install in the reverse order of removal.

PCV valve installation :

1.8 ~ 2.8 N.m (0.18 ~ 0.29 kgf.m, 1.3 ~ 2.1 lb-ft)

Repair procedures

Inspection 1. After disconnecting the vapor hose from the PCV valve, remove the PCV valve. 2. Reconnect the PCV valve to the vapor hos ...
