Components and components location

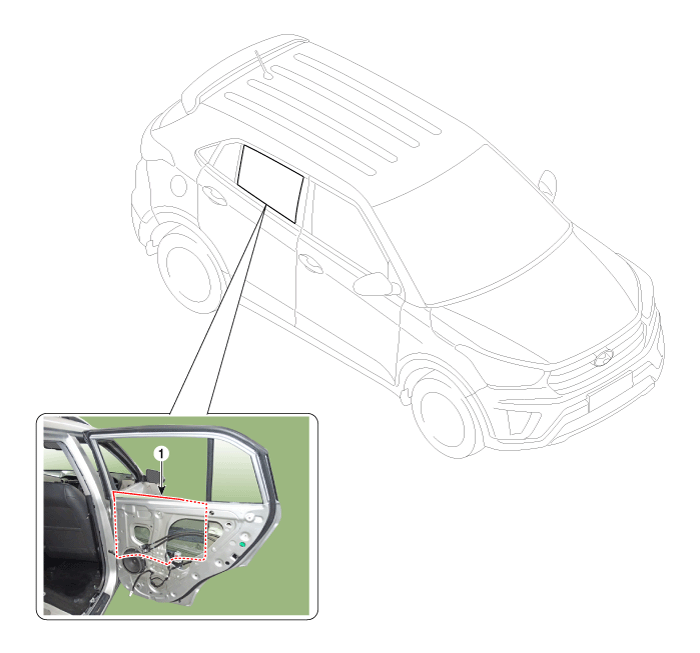

Component Location

1. Rear door window glass

Repair procedures

Replacement

1.	Pull down rear door window glass by pressing the power window glass switch.

2.	Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim")

3.	After loosening the mounting screws, then remove the rear door trim seal mounting bracket.

Remove the rear door trim seal.

•	Replace any damaged door trim seal.

5.	Remove the rear door belt inside weatherstrip (A).

6.	Remove the rear door belt outside weatherstrip (A).

7.	Remove the rear door side weatherstrip.

8.	After loosening the mounting screw and bolt, then twisting delta channel to separate alass from glass run using channel lower bracket (A).

Carefully adjust the rear door window glass (A) until you can see the bolt, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.

Tightening torque :

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

•	Be careful not to drop the glass and/or scratch the glass surface.

•	Use the door switch to align the mounting hole/bolt with the hole in the door.

•	If unable to operate the window motor, remove the motor and align the hole by hand.

10.

To install, reverse the removal procedure.

•	Roll the glass up and down to see if it moves freely without binding.

•	Adjust glass position as needed.

•	Make sure the door lock and opens properly.

•	Replace any damaged clips.
