Hyundai Creta: Rear Door / Rear Door Trim

Hyundai Creta GS 2014-2021 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Trim

Components and components location

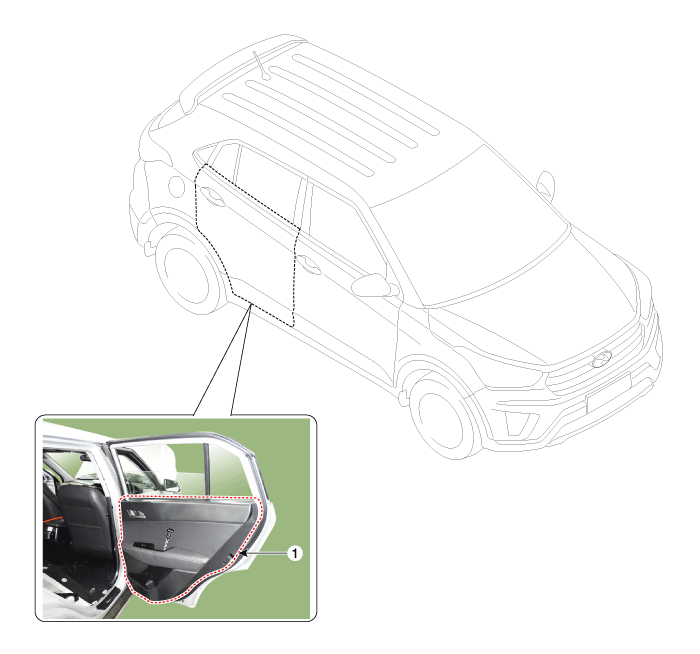

Component Location

1. Rear door trim

Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Be careful not to scratch the door trim and other parts.

1.	Remove the rear door pull handle hole plug (A).

2.	After loosening the mounting screws, then remove the rear door trim (A).

3.	Remove the rear door inside handle cage (A).

4.	Disconnect the power window switch connector (A).

To install, reverse the removal procedure.

•	Make sure the connector is connected properly.

•	Make sure the door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
